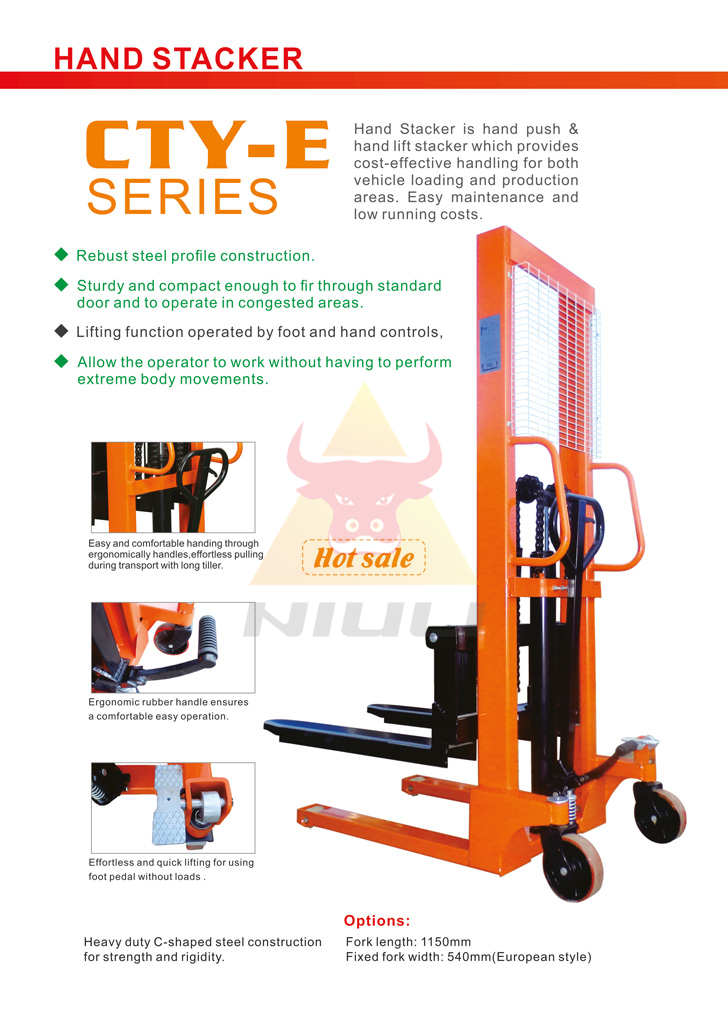

Hand Stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and low running costs.
CTY-E Hand Stacker
Product Name:CTY-E Hand Stacker
Product Detail
| Model | CTY-E1.0 | CTY-E2.0 |
| Rated lifting capacity(kg) | 1000 | 2000 |
| Max lifting height(mm) | 1600 | 1600 |
| Door frame material | Bending C type steel | Bending C type steel |
| Lowered height of forks(mm) | 90 | 90 |
| Fork length(mm) | 900 | 900 |
| Adjustable width of forks(mm) | 320-740 | 360-740 |
| Lifting speed(mm/s) | 20 | 14 |
| Lowering speed(mm/s) | Controllable | Controllable |
| Outer width of front legs(mm) | 690 | 690 |
| Operation power of hand crank(kg) | 24 | 32 |
|
Min.refuel volume for fuel tank(L) |
1.5 | 2.0 |
| Front wheel size(mm) | φ74×52 | φ74×70 |
| Rear wheel size(mm) | φ180×50 | φ180×50 |
| Overall size(mm) | 1390×780×2040 | 1390×780×2040 |
| Truck weight(kg) | 150 | 250 |
