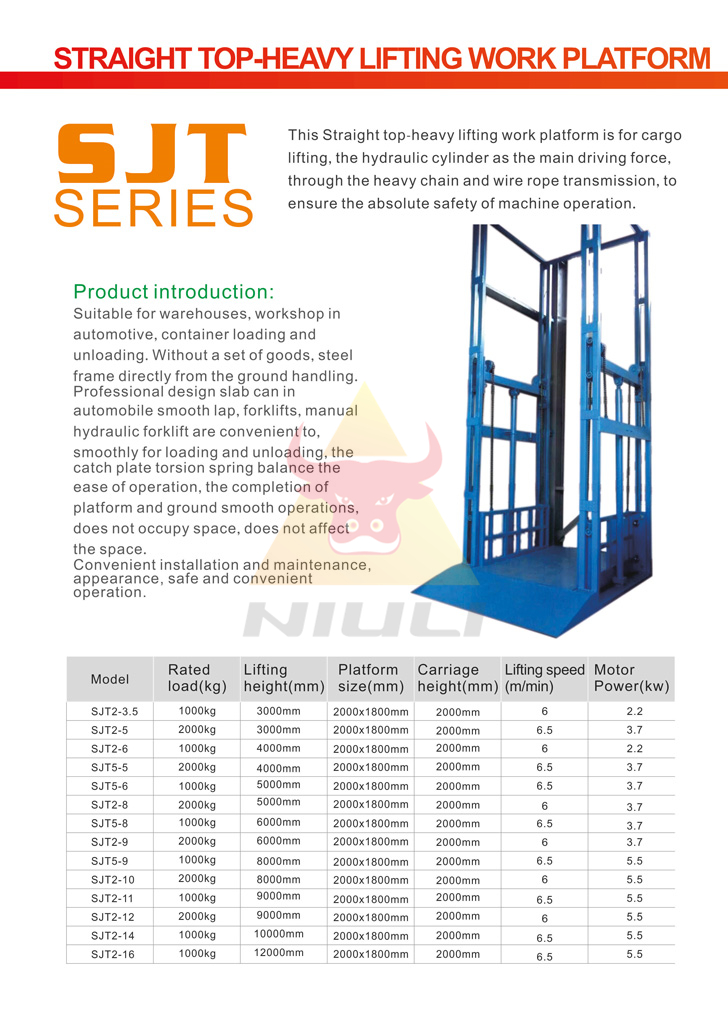

This Straight top-heavy lifting work platform is for cargo lifting,the hydraulic cylinder as the main driving
force,through the heavy chain and wire rope transmission,to ensure the absolute safety of machine operation.
SJT Chain hydraulic lift table
Product Name:SJT Chain hydraulic lift table
Product Detail
| Model | Rated load(kg) | Lifting height (mm) | Platform size (mm) | Carriage height (mm) | Lifting speed (m/min) | Motor Power(kw) |
| SJT1-3 | 1000 | 3000 | 2000×2000 | 2000 | 6.5 | 2.2 |
| SJT2-3 | 2000 | 3000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-4 | 1000 | 4000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-4 | 2000 | 4000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-5 | 1000 | 5000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-5 | 2000 | 5000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-6 | 1000 | 6000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-6 | 2000 | 6000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-7 | 1000 | 7000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-7 | 2000 | 7000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-8 | 1000 | 8000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT2-8 | 2000 | 8000 | 2000×2000 | 2000 | 6 | 5.5 |
| SJT1-9 | 1000 | 9000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT2-9 | 2000 | 9000 | 2000×2000 | 2000 | 6 | 5.5 |
| SJT1-10 | 1000 | 10000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT1-12 | 1000 | 12000 | 2000×2000 | 2000 | 6.5 | 5.5 |
