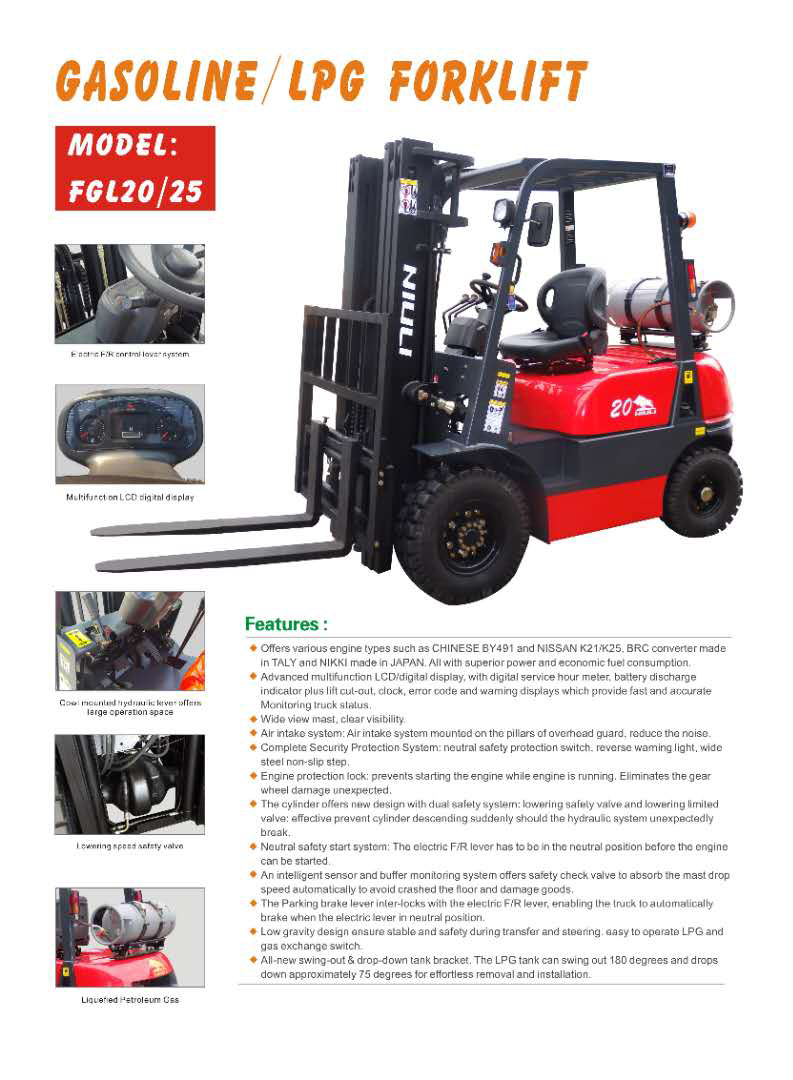

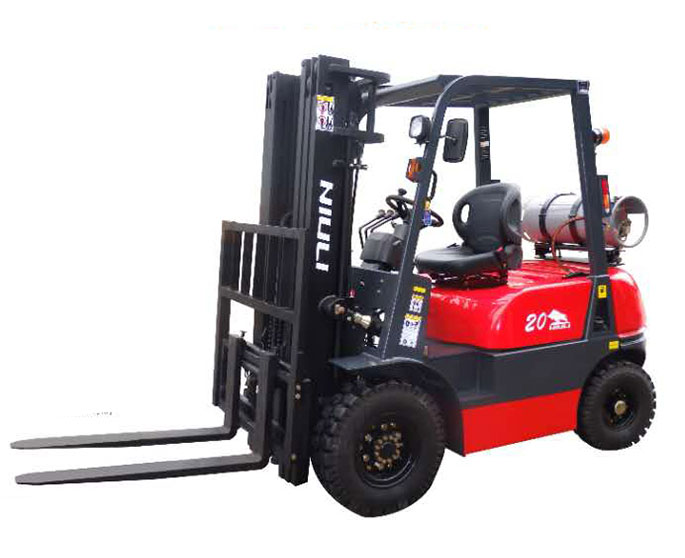

提供中國BY 491、日產K21/K25、TALY BRC變流器、日本NIKKI等各種發動機類型，均具有優良的動力性和經濟性油耗。

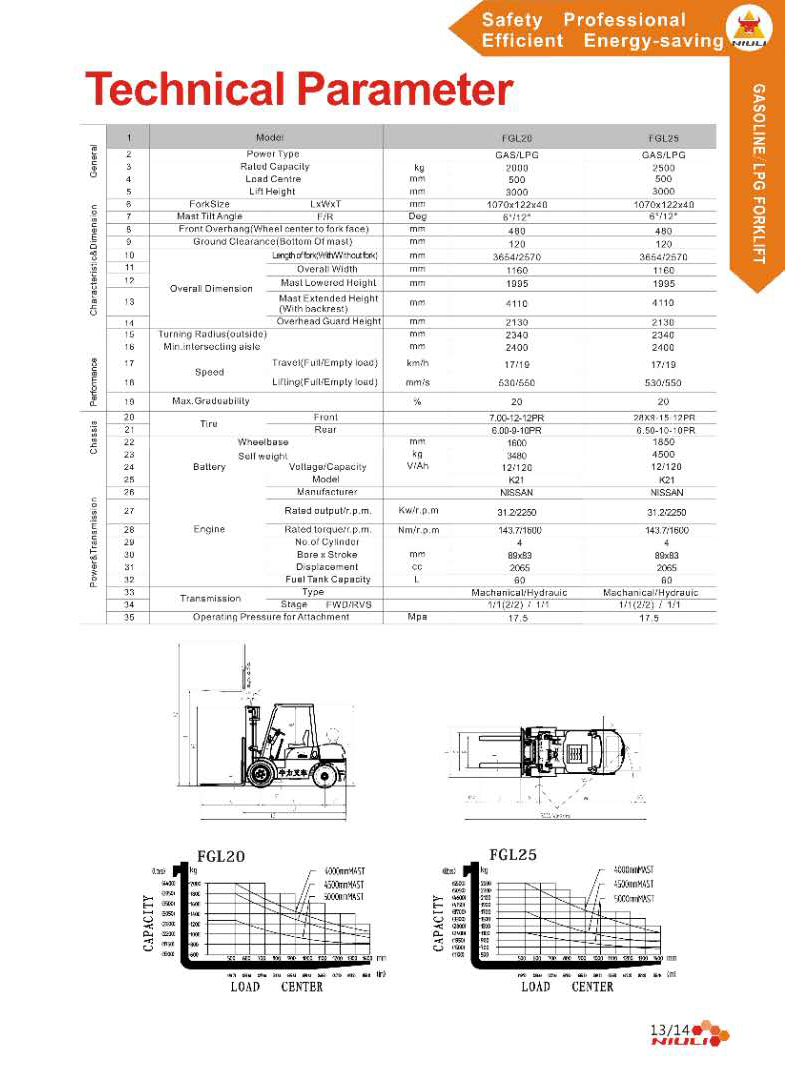

| Model | Unit | FGL20 | FGL25 | ||
| Power Type | GAS/LPG | GAS/LPG | |||
| Rated Capacity | kg | 2000 | 2500 | ||
| Load Centre | mm | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | ||
| Fork Size | L*W*T | mm | 1070*122*40 | 1070*122*40 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |
| Front Overhang(Wheel center to fork face) | mm | 480 | 480 | ||
| Ground Clearance(Bottom Of mast) | mm | 120 | 120 | ||
| Overall Dimension |
Length of fork(With/Without fork) | mm | 3654/2570 | 3654/2570 | |
| Overall Width | mm | 1160 | 1160 | ||
| Mast Lowered Height | mm | 1995 | 1995 | ||
| Mast Lowered Height(With backrest) | mm | 4110 | 4110 | ||
| Overhead Guard Height | mm | 2130 | 2130 | ||
| Turning Radius(outside) | mm | 2340 | 2340 | ||
| Min.intersection aisle | mm | 2400 | 2400 | ||
| Speed | Travel(Full/Empty load) | km/h | 17/19 | 17/19 | |
| Lifting(Full/Empty load) | mm/s | 530/550 | 530/550 | ||
| Max.Gradeability | % | 20 | 20 | ||
| Tire | Front | 7.00-12-12PR | 28*9-15-12PR | ||
| Rear | 6.00-9-10PR | 6.50-10-10PR | |||
| Wheelbase | mm | 1600 | 1850 | ||
| Self weight | kg | 3480 | 4500 | ||
| Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | |
| Engine | Model | K21 | K21 | ||
| Manufacturer | NISSAN | NISSAN | |||
| Rated output/r.p.m. | Kw/r.p.m | 31.2/2250 | 31.2/2250 | ||
| Rated torque/r.p.m. | Nm/r.p.m | 143.7/1600 | 143.7/1600 | ||
| No.of Cylinder | 4 | 4 | |||
| Bore × Stroke | mm | 89*83 | 89*83 | ||
| Displacement | cc | 2065 | 2065 | ||
| Fuel Tank Capacity | L | 60 | 60 | ||
| Transmission | Type | Machanical/Hydrauic | Machanical/Hydrauic | ||
| Stage | FWD/RVS | 1/1(2/2) / 1/1 | 1/1(2/2) / 1/1 | ||
| Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | ||
